When selecting an impact wrench, many people often struggle with whether to choose a 3/8-inch drive or a 1/2-inch drive. In this article, we’ll analyze the differences between these two drive sizes to help you choose the right impact wrench for your needs.
Features of 3/8 Inch Impact Wrenches
A 3/8-inch drive refers to the square drive head’s diagonal width, which measures 3/8 inches (about 9.5 mm). Impact wrenches with this drive size are typically medium-sized tools that strike a balance between portability and torque output. Key features include:
- Torque Range: A 3/8-inch impact wrench typically provides lower torque compared to the 1/2-inch model, with a medium range. Many 3/8-inch cordless wrenches have a maximum torque of about 100-300 N·m (Newton-meters), which is suitable for medium-duty tightening and loosening tasks. Some high-end models can reach about 225 ft-lbs (≈305 N·m) of torque. However, in general, a 3/8-inch wrench is not suitable for heavy-duty applications requiring extremely high torque.
- Tool Size and Weight: These impact wrenches are usually more compact and lightweight, making them easier to operate with one hand and ideal for tight spaces such as engine compartments. The ergonomic advantage of a 3/8-inch wrench becomes especially apparent when used for overhead or prolonged tasks.
- Socket Compatibility: The 3/8-inch drive is compatible with medium to small-sized sockets, often used for common-sized bolts and nuts. For example, many fasteners on cars and motorcycles are handled by a 3/8-inch socket. When used for tasks like removing lug nuts from car wheels, a high-performance 3/8-inch impact wrench can usually do the job. However, it may struggle with particularly large or rusted bolts.
- Battery Voltage or Power: 3/8-inch cordless impact wrenches are commonly found on 12V and 18V battery platforms. Smaller 12V batteries make the tool more compact, ideal for small tasks in tight spaces or overhead work. An 18V system (sometimes labeled as 20V Max) offers greater power output for higher torque needs. Compared to corded models, 3/8-inch cordless wrenches are more portable.
Read more: What Is an Impact Wrench
Features of 1/2 Inch Impact Wrenches
A 1/2-inch drive (about 12.7 mm) is a larger and more common impact wrench size. These wrenches are ideal for applications that require high torque output. Key features of a 1/2-inch impact wrench include:
- Torque Range: A 1/2-inch impact wrench can provide significantly higher torque output. Most 1/2-inch cordless models offer a maximum torque range of 300-900 N·m or even higher, far exceeding that of a 3/8-inch wrench. For instance, some flagship 18V models claim a bolt removal torque of 1400 ft-lbs (≈1900 N·m). Such powerful torque makes it ideal for heavy-duty applications, such as large equipment bolts and truck tire lug nuts. While it can handle smaller tasks, it may lack precision control in low-torque situations.
- Tool Size and Weight: To accommodate a larger motor and impact mechanism, a 1/2-inch impact wrench is generally bulkier and heavier. This can make it less maneuverable in tight spaces and more tiring to hold for extended periods. However, the larger body provides better stability under high torque, reducing the risk of torque reaction loss. Overall, though, the 1/2-inch wrench sacrifices some flexibility for higher power.
- Socket Compatibility: The 1/2-inch drive is compatible with medium to large-sized sockets, ideal for larger bolts and nuts. This makes it the go-to tool for industrial and heavy-duty applications, whether for building steel structures or fasteners on trucks and machinery. For rusted or seized bolts, the 1/2-inch wrench often works more effectively due to its higher impact torque.
- Battery Voltage or Power: Most cordless 1/2-inch impact wrenches use 18V or 20V batteries, providing ample power reserves. Some high-end models offer even higher voltages (such as 36V or 40V) to deliver extreme torque output. Generally, a higher voltage means more power, but also larger size and weight. Corded 1/2-inch impact wrenches are common in professional settings, offering motor power typically between 7-10 amps, providing stable high-torque performance without worrying about battery life. Whether to choose a corded or cordless model depends on your mobility and continuous work time needs.
3/8-inch vs 1/2-inch Impact Wrench: What’s the Difference?
The table below summarizes the key differences between 3/8-inch and 1/2-inch impact wrenches, making it easier for you to compare their characteristics:
| Item | 3/8-inch Impact Wrench | 1/2-inch Impact Wrench |
| Typical Max Torque | Medium, around 100-300 N·m, high-end models up to ≈305 N·m | High, commonly 400-1000+ N·m, top models exceed 1300 N·m |
| Size and Weight | Compact, lightweight, easy one-handed operation, great for tight spaces | Larger, heavier, more stable under high torque but less maneuverable in tight spaces |
| Drive Head Size | 3/8-inch drive, fits medium to small sockets | 1/2-inch drive, fits medium to large sockets |
| Power Platform | Cordless models typically 12V or 18V, few corded options | Cordless models typically 18-20V, corded models common (7-10 amp motors) |
| Typical Application | Medium torque tasks, precision assembly, confined space operations | High torque tasks, large fastener assembly, professional construction/repair |
| Main Advantage | High precision, easy to use, lightweight | Strong torque, excellent heavy-duty capability, versatile |
| Main Disadvantage | Limited torque, not suitable for extremely heavy loads | Heavier, less maneuverable in tight spaces, less precise |
Note: N·m is Newton meters, 1 N·m ≈ 0.7375 foot-pounds; the values in the table above are approximate ranges and may vary between different brands and models.
Should I buy a 1/2 or 3/8 torque wrench?
Choosing between a 3/8-inch and 1/2-inch impact wrench depends on your specific tasks and work environment. Here are some recommendations for different user groups:
DIY Home Users
If you need a tool for routine home repairs, simple car maintenance, or general medium-duty tasks, a 3/8-inch impact wrench is often the better choice. It’s compact, versatile, and offers enough torque for most common needs. For DIY enthusiasts, the 3/8-inch model provides great flexibility and control for tasks ranging from furniture assembly to bike repairs, and its lightweight design makes it easy to handle.
Automotive Repair

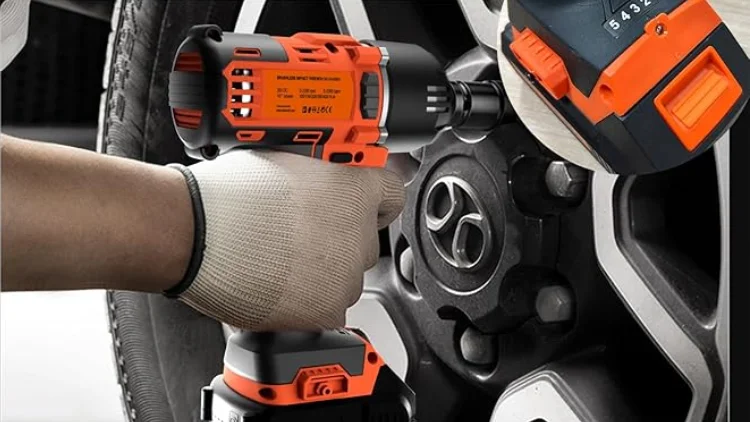

Both sizes can be useful in the automotive field. If you frequently work on changing tires or removing suspension parts, a 1/2-inch impact wrench is better suited, as tire lug nuts generally require higher torque to loosen, and the 1/2-inch wrench can handle this with ease.
However, for smaller vehicles (such as motorcycles or smaller car engine compartments) or delicate tasks, a 3/8-inch wrench provides better maneuverability without risking damage from excessive torque. In short, if your automotive repair work leans more towards heavy-duty tasks like tires and suspension, choose a 1/2-inch wrench. For engine accessories or smaller bolts, the 3/8-inch wrench will be more efficient.
Professional Technicians and Industrial Users
For automotive repair technicians, machinery maintenance personnel, or construction workers, a 1/2-inch impact wrench is often the standard tool. Its higher torque and durability make it ideal for handling large fasteners and heavy-duty tasks.
In a professional setting, you’ll frequently encounter stubborn fasteners and need to work continuously, and the 1/2-inch wrench provides the power and durability you need. Of course, many professionals also carry a 3/8-inch wrench for jobs requiring precision or working in tight spaces—having both sizes gives you the flexibility to tackle nearly any task.
If your budget or tool storage is limited, choose based on your primary tasks: heavy-duty work calls for the 1/2-inch wrench, while lighter, more versatile jobs benefit from the 3/8-inch model.
Conclusion
In conclusion, beginners may start with a 1/2-inch drive impact wrench to avoid the issue of inadequate power. Prepare a good set of 1/2-inch drive sockets, and if you find yourself needing a smaller tool for specific tasks, you can always switch to a smaller size with an adapter.
Are you ready to add this kind of impact wrench to your toolbox? You can find them on the Kafuwell website.
Frequently Asked Questions (FAQs)
Can an Impact Wrench Replace a Ratchet Wrench?
Impact wrenches are highly effective for high-torque tasks but can’t fully replace a ratchet wrench. Ratchet wrenches are better suited for precision tasks and confined spaces, while impact wrenches are designed for quick, high-strength assembly and disassembly.
What Are the Advantages of a Cordless Impact Wrench over a Corded Model?
Cordless impact wrenches offer better portability and flexibility, making them ideal for outdoor or under-vehicle work. Corded models, however, tend to provide more consistent torque and are better suited for workshop or stationary use. Your choice will depend on your work environment.
Can an Impact Wrench Be Used to Tighten Screws?
Yes, but with caution. The high force of an impact wrench can overtighten screws or damage them. It’s recommended to use a torque wrench for final tightening to ensure precision.
What Other Parameters Should I Consider When Buying an Impact Wrench?
Consider the following:
- Maximum torque output
- Speed and impact rate
- Weight and size
- Battery voltage (for cordless models)
- Availability of multiple speed settings or auto-stop features
Can an Impact Wrench Remove Rusted Bolts?
Yes, the high-impact force of an impact wrench is ideal for loosening rusted or seized bolts. However, it’s advisable to use penetrating lubricants to minimize damage to both the tool and the bolt.
Does an Impact Wrench Require Special Sockets?
It’s recommended to use impact-rated sockets, as they are made from materials that can withstand high-frequency vibration and strong torque, preventing the risk of breakage.
How Can a Beginner Determine the Required Torque Range?
For car repairs, a torque range of 300-600 ft-lbs is common; for home DIY or small appliance repairs, it’s typically between 100-200 ft-lbs. Ensure that the maximum torque of your tool covers the needs of your primary tasks.
